Enable Active High Beam

[bochenn]

Hello!

Is it possible to add vía software the Active High Beam system to my car?

Thanks,
L

[T5 T6 Schnappi]

@bochenn if your car has the required hardware like FSM, CVM and so on, than yes.

[T5 T6 Schnappi]

@bochenn Does your car have adaptive cruise control and traffic sign recognition?

[T5 T6 Schnappi]

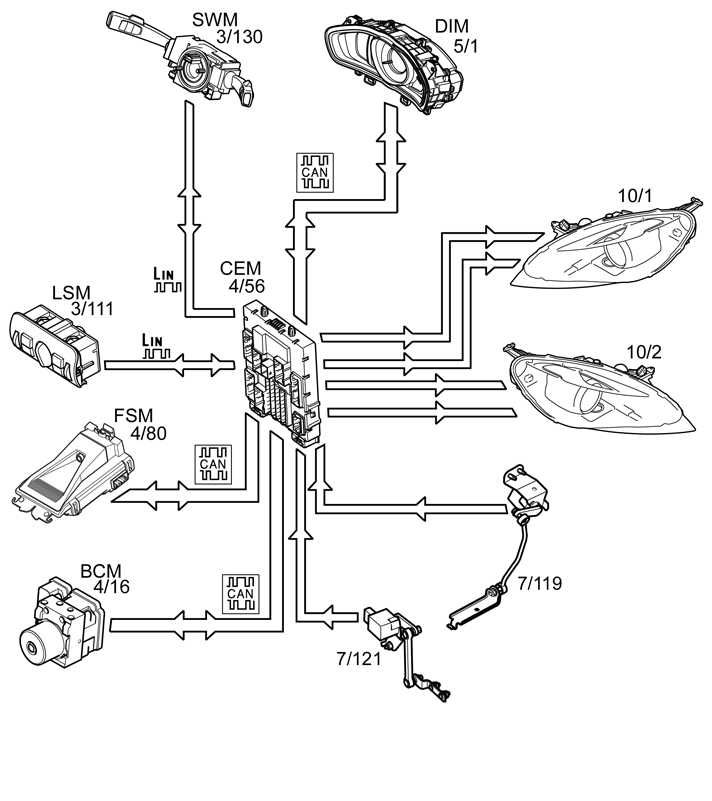

@bochenn here is the schematic of all modules involved for AHB. 7/119 and 7/121 are the height sensor at the front and rear axle.

[bochenn]

Hello @T5-T6-Schnappi and thanks for all the responses and information. But unfortunately I don’t know what comes with my car.
Can you tell me a way to figure out that?

I thought with the VIN was enough.

Thanks again!
L

[T5 T6 Schnappi]

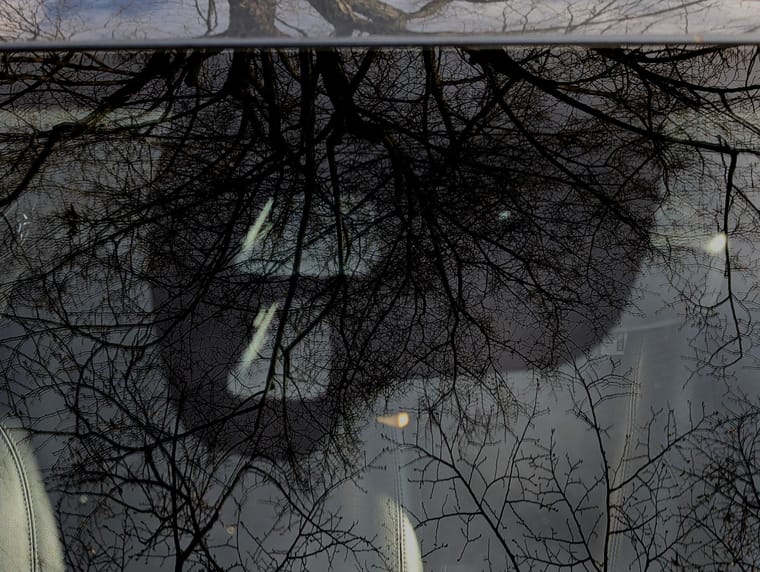

@bochenn The VIN is not enough. It's not fully shown to other users, and even if it was shown in full, it would only be useful for users, who have access to a legit subscription of VIDA which is not possible for private users, except in the USA. You either have to connect the car to Vdash at least once, and then tick the box to add your car configuration when you make a post. Or you simply make a photo of the upper middle black area of your windscreen above the rearview mirror and upload it here. This area. This photo is for example without the FSM.
Your car also needs to have Xenon headlights, as cars with Halogens don't have the required height sensors.
